Barbed wire is a type of wire twisted and woven by a fully automated barbed wire machine. Widely used in fields such as architecture, agriculture, and industry.
Key words: Barbed wire, strong and durable, airport fence, prison wall protection, durable, construction site, field border protection, territorial border boundary division, used to enclose, restrict activity areas, prevent livestock from straying, protect building safety, isolation, factory warehouse fence, industrial equipment isolation, widely used, PVC plastic-coated, galvanized, aluminized, beautify the environment, The process is simple and practical
Product details
Why Is Barbed Wire Used?
Barbed wire is a highly versatile and long-lasting product that has many uses. Three common applications of barbed wire include:
1. To Offer Protection: The sharp barbs on barbed wire look threatening and act as a strong deterrent to potential intruders. For this reason, you often find barbed wire forming perimeter fences around industrial and construction sites, fields, prisons, and other sensitive sites.
2. For Division: You can use barbed wire along boundaries and borders to mark territories, divide ownership or segregate one area from another.

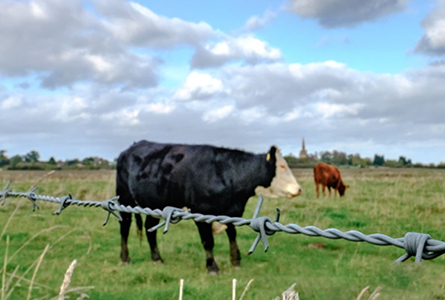

3. For Containment: The military, prisons, and correctional facilities use barbed wire to confine inmates and prevent escape. Barbed wire fences can also surround agricultural land to stop livestock and cattle from straying into other fields or territories.
Three ways of twisting the barbed wire
Positive twisting, reverse twisting, positive and negative twisting.
Positive twist method: that is, two or more iron wires are twisted into two strands of wire rope and then the barbed rope is wound on the two strands of wire
Reverse twist method: It is to wrap the neb wire around the main wire (that is, a single wire) and then add an iron wire to twist and weave it into two strands of barbed rope.
Positive and negative twist method: it is twisted in the opposite direction from the direction of the main wire winding. It's not a twist in one direction.
Surface treatment
Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
Galvanized barbed rope, can be electric galvanized and hot dip galvanized
PVC barbed wire for the surface treatment is PVC plastic-coated treatment, the inside barbed wire for black wire, electroplating wire and hot plating wire.
The main function of the plastic coated cable is to prevent personnel from illegally entering or crossing a certain area. It can be installed on fences, railings, walls and other places to form a strong protective barrier. If someone tries to climb or climb over, the sharp plastic spines on the rope will Pierce their skin, thus acting as a deterrent and deterrence.
Plastic coated barbed rope can not only be used for protection, but also can play a role in beautifying the environment. Its appearance is simple and generous, with a variety of colors, which can be coordinated with the surrounding environment. In some public places, such as parks, squares, etc., plastic coated thorn ropes are used to protect lawns and flower beds to prevent people from trampling and destroying them at will.
The surface of the aluminum-coated wire is covered with a layer of aluminum, which is also called aluminum plating. We all know that aluminum is not rusty, so the surface of aluminum plating can greatly improve the anti-corrosion ability, so that its life is longer.
| Specification | ||||
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0-3.5mm | 1.4-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request | ||||
First barbed wire has an important application in the field of construction. It can be used in the construction of walls to play the role of isolation and protection. The strong and durable performance of the barbed wire rope can effectively prevent the intrusion of the outside world and protect the safety of the building. At the same time, the barbed wire can also be used for the exterior wall decoration of the building to increase the aesthetics of the building.
Secondly, the barbed wire also has a wide range of applications in the agricultural field. It can be used for the fence construction of farmland and play a role in protecting crops. Barbed wire can effectively prevent wild animals, pests and other external factors to the damage of crops, improve the yield and quality of crops.
Third, the barbed wire also has important applications in the industrial field. It can be used in the construction of fences in factories, warehouses and other places to play a role in security protection. The strong performance of the wire can effectively prevent external intrusion and protect the safety of equipment and items in the factory and warehouse. In addition, the barbed wire can also be used for the isolation of industrial equipment to prevent workers from contacting dangerous areas and ensure the safety of workers.
In short, as an important building material, wire barbed wire has a wide range of applications in various fields. Its rugged and durable, good protective performance and other characteristics make it the preferred wall, fence, protective net material. With the continuous progress of science and technology, the varieties and specifications of wire thorn rope are also constantly enriched and improved, providing more and better choices for all walks of life
